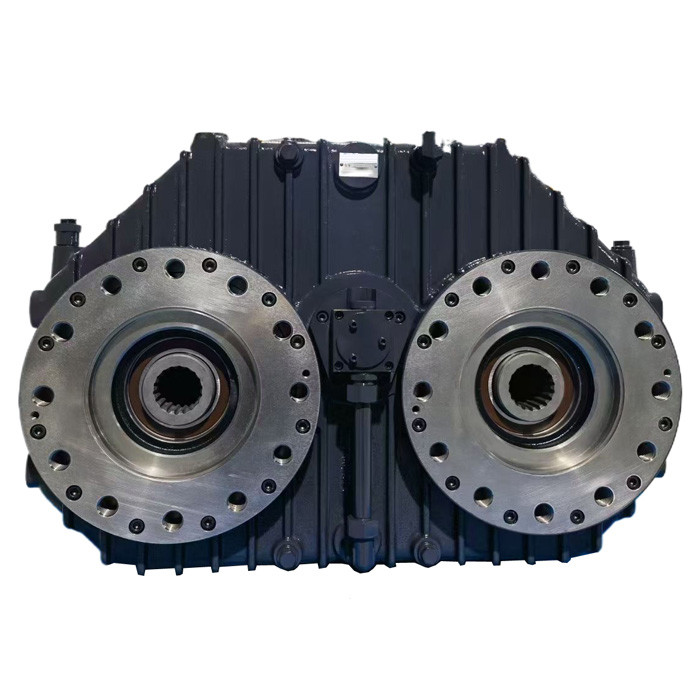

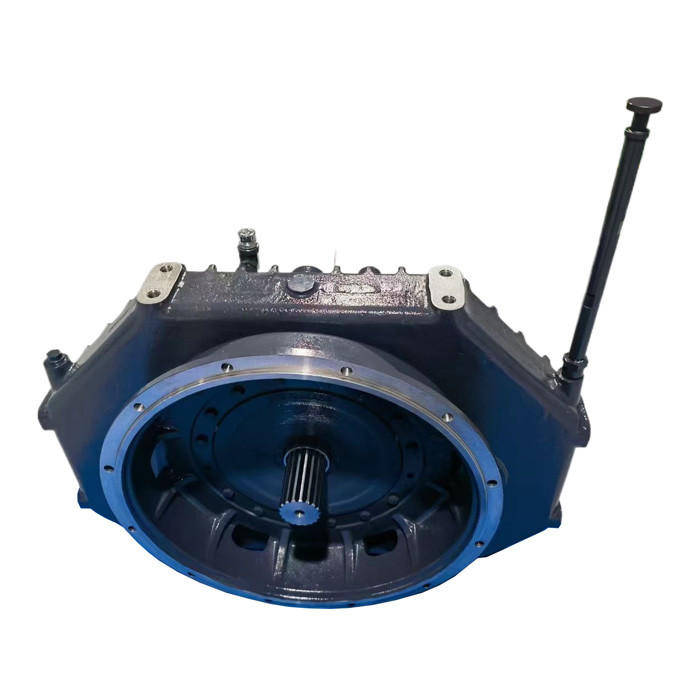

880HP Two Output Pump Drive 2PD-650

  • 880HP Two Output Pump Drive 2PD-650
  • 880HP Two Output Pump Drive 2PD-650
Place of Origin China
Brand Name Deren
Certification ISO9001
Model Number 2PD-650
Minimum Order Quantity 1pc
Price USD3500
Packaging Details Plywood case with pallet
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pump Max. Power 880HP
Output Type Two Output Industry Agriculture Machinery
High Light

Transmission Pump Drive

,

small transfer case

,

Pump Drive Gearbox 880HP
Leave a Message
Product Description

880HP One Input Two Outputs Pump Drive 2PD-650



Maximum Input Power 650 kW (880 hp)


1:1 ratio @ 2500 rpm



Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.



Features:

High Strength Cast Iron housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.



Specifications:

Ratio Max. input torque (N.m) Max. output torque for single pump (N.m) Max. input speed (r/min) Max. output speed
(r/min)
0.58 3343 966 2000 3459
0.68 3183 1088 2100 3073
0.77 2971 1147 2250 2915
0.9 2785 1261 2400 2650
1 2674 1337 2500 2500



Connection options:

Flywheel housing:

SAE #2

SAE #1



Flywheel:

SAE # 11.5 inch

SAE # 14 inch



Hydraulic flange:

SAE B

SAE C

SAE D

SAE E



Spline sleeve:

ANSI B92.1 30° 15T-16/32DP 46mm

ANSI B92.1 30° 14T-12/24DP 56mm

ANSI B92.1 30° 13T-8/16DP 75mm

ANSI B92.1 30° 23T-16/32DP 62mm

ANSI B92.1 30° 27T-16/32DP 75mm

DIN5480 W45×2×30×21 60mm

DIN5480 W50×2×30×24 65mm



Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
