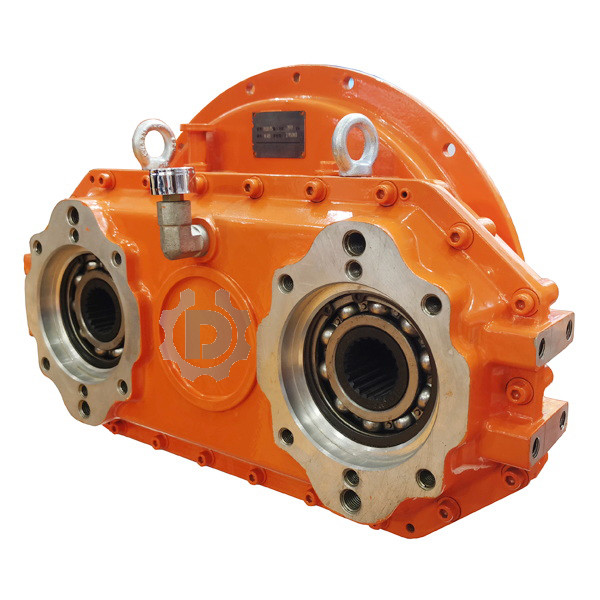

485HP Two Outpus Pump Drive 2PD-360

  • 485HP Two Outpus Pump Drive 2PD-360
  • 485HP Two Outpus Pump Drive 2PD-360
Place of Origin China
Brand Name Deren
Certification ISO9001
Model Number 2PD-360
Minimum Order Quantity 1pc
Price USD2000
Packaging Details Plywood case with pallet
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pump Max. Power 485HP
Output Type Two Output Industry Agriculture Machinery
High Light

Water Pump Drive 485HP

,

Hydraulic Water Pump Drive

,

Hydraulic Pump Drive
Leave a Message
Product Description

485HP One Input Two Outputs Pump Drive 2PD-360



Maximum Input Power 360 kW (485 hp)


1:1 ratio @ 3200 rpm



Pump Drive is a transfer gearbox used for the connection of Electric Motor and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.



Features:

High Strength Aluminum Aloy housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.

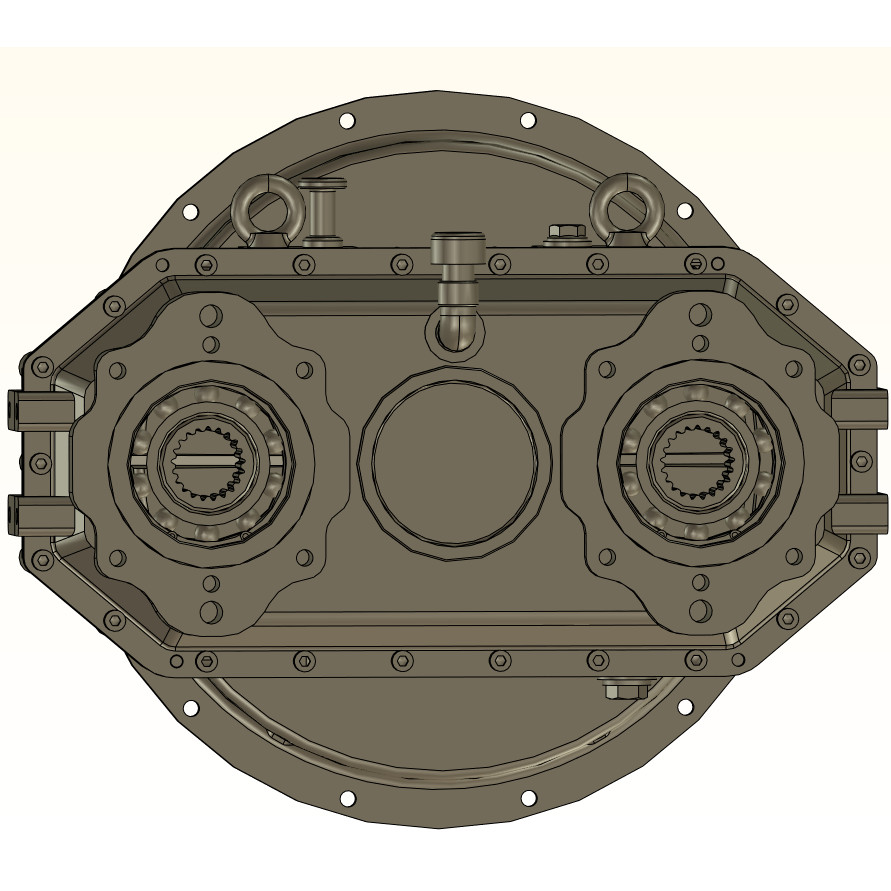

485HP Two Outpus Pump Drive 2PD-360 0



Specifications:



Ratio Max. input torque (N.m) Max. output torque for single pump (N.m) Max. input speed (r/min) Max. output speed
(r/min)
0.56 1375 426 2500 4486
0.69 1273 486 2700 3927
0.76 1206 510 2850 3746
0.88 1146 563 3000 3395
1 1074 597 3200 3200



Connection options:

Electric Motor housing



Hydraulic flange:

SAE B

SAE C

SAE D



Spline sleeve:

ANSI B92.1 30° 13T-16/32DP 41mm

ANSI B92.1 30° 15T-16/32DP 46mm

ANSI B92.1 30° 14T-12/24DP 56mm

DIN5480 W35×2×30×16 50mm



Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
