780KW One Input Three Outputs Transfer Case for Hydraulic Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Hydraulic Pump | Max. Power | 780KW |
|---|---|---|---|
| Output Type | Three Output | Industry | Agriculture Machinery |
| High Light | transfer case 6x6,transmission and transfer case,Gearbox transfer Case 6x6 |
||
Product Description

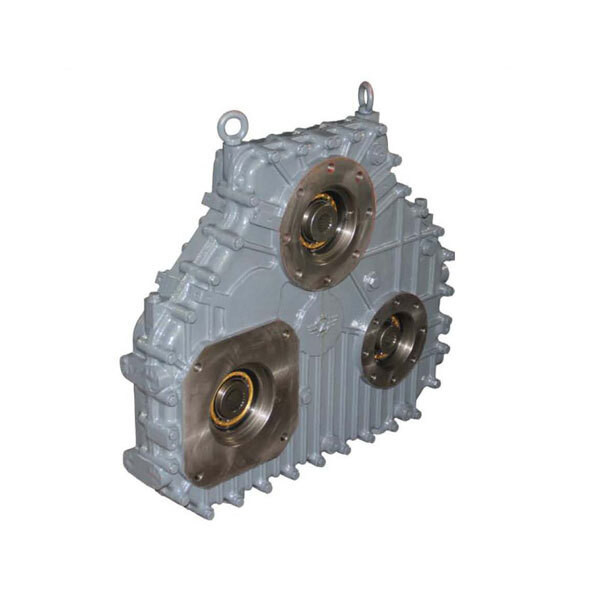

780KW One Input Three Outputs Transfer Case for Hydraulic Pump
Maximum Input Power 780 kW (1055 hp)
1:1 ratio @ 2500 rpm
Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.
Features:
High Strength Cast Iron housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.
Specifications:
| Ratio (:1) |
Max. input torque (N.m) | Max. output torque per Pump Pad (N.m) | Max. input speed (r/min) | Max. output speed (r/min) |
| 0.58 | 4298 | 966 | 2000 | 3459 |
| 0.68 | 4093 | 1088 | 2100 | 3073 |
| 0.77 | 3820 | 1147 | 2250 | 2915 |
| 0.9 | 3581 | 1261 | 2400 | 2650 |
| 1 | 3438 | 1337 | 2500 | 2500 |
Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
