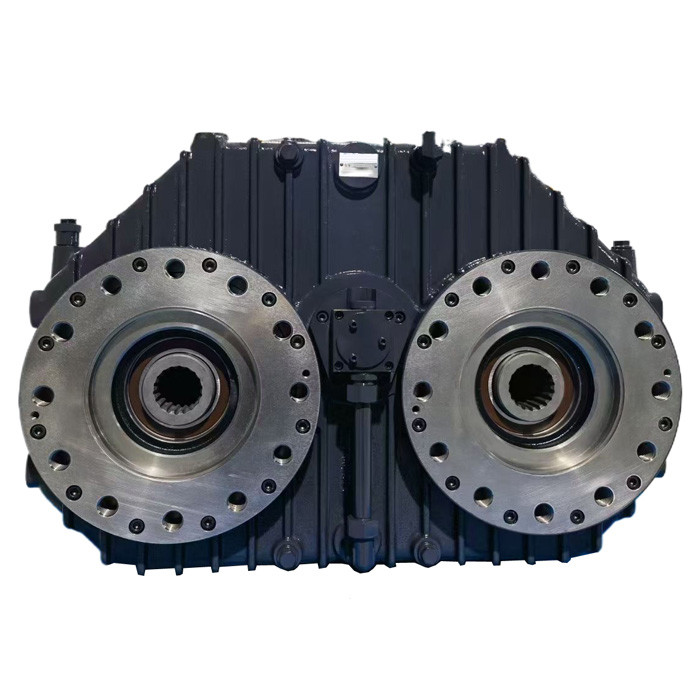

1080HP Two Output Pump Drive 2PD-800

  • 1080HP Two Output Pump Drive 2PD-800
Place of Origin China
Brand Name Deren
Certification ISO9001
Model Number 2PD-800
Minimum Order Quantity 1pc
Price USD4000
Packaging Details Plywood case with pallet
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pump Max. Power 1080HP
Output Type Two Output Industry Agriculture Machinery
High Light

1080HP Pump Drive Gearbox

,

engine transfer case

,

Transfer Case Two Outputs
Leave a Message
Product Description

1080HP One Input Two Outputs Pump Drive 2PD-800



Maximum Input Power 800 kW (1080 hp)


1:1 ratio @ 1800 rpm



Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.



Features:

High Strength Cast Iron housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.



Specifications:

Ratio Max. input torque (N.m) Max. output torque for single pump (N.m) Max. input speed (r/min) Max. output speed
(r/min)
0.57 6139 2009 1400 2472
0.73 5372 2276 1600 2182
0.88 5056 2582 1700 1923
1.00 4775 2759 1800 1800
1.13 4524 2956 1900 1680
1.20 4524 3145 1900 1579



Connection options:

Flywheel housing:

SAE #2

SAE #1

SAE #0



Flywheel:

SAE # 14 inch

SAE # 16 inch



Hydraulic flange:

SAE C

SAE D

SAE E



Spline sleeve:

ANSI B92.1 30° 14T-12/24DP 56mm

ANSI B92.1 30° 13T-8/16DP 75mm

ANSI B92.1 30° 23T-16/32DP 62mm

ANSI B92.1 30° 27T-16/32DP 75mm

DIN5480 W50×2×30×24 65mm

DIN5480 W60×2×30×28 66mm



Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
