250HP Two Output Pump Drive 2PD-200

  • 250HP Two Output Pump Drive 2PD-200
  • 250HP Two Output Pump Drive 2PD-200
  • 250HP Two Output Pump Drive 2PD-200
Place of Origin China
Brand Name Deren
Certification ISO9001
Model Number 2PD-200
Minimum Order Quantity 1pc
Price USD1500
Packaging Details Plywood case with pallet
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pump Max. Input Power 250HP
Output Type Two Output Industry Agriculture Machinery
High Light

2-Position Pump Drive

,

transmission transfer case

,

Pump Drive 250HP
Leave a Message
Product Description

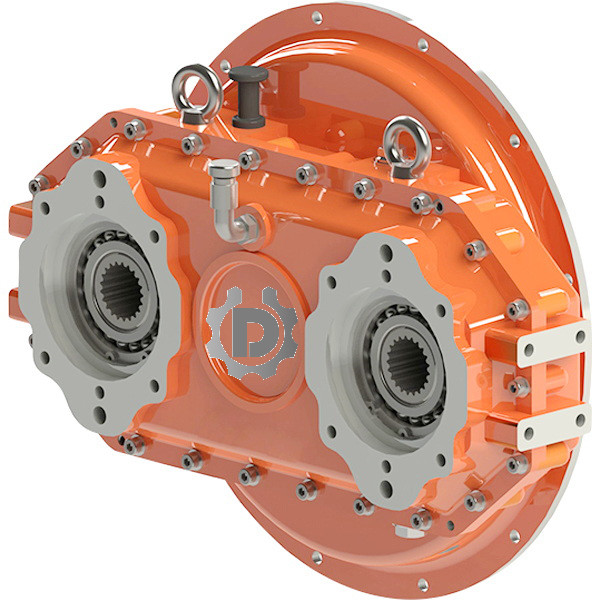

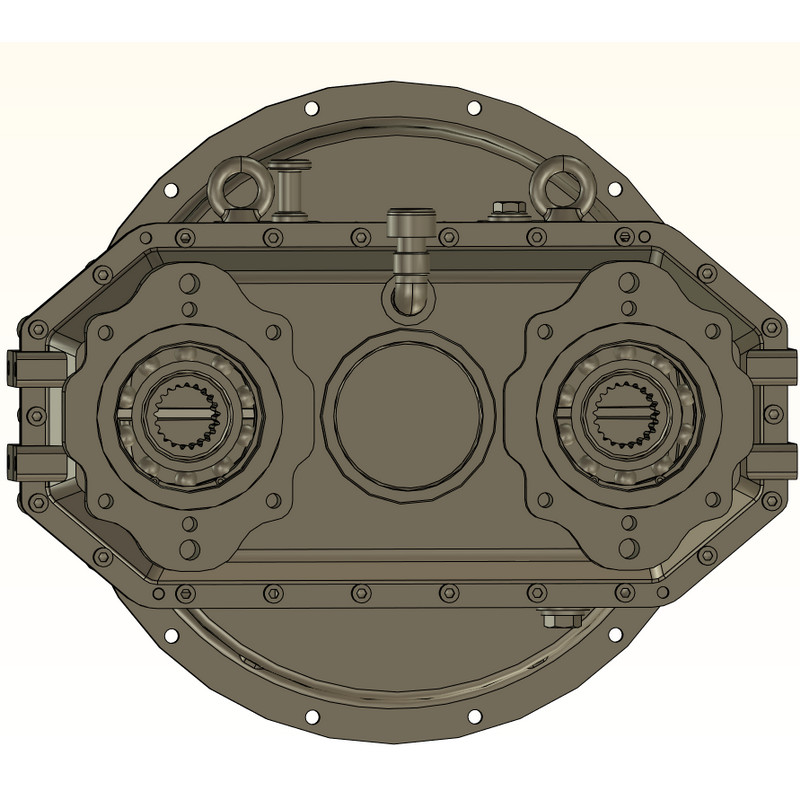

250HP One Input Two Output Pump Drive 2PD-200



Maximum Input Power 190 kW (250 hp)


1:1 ratio @ 2800 rpm



Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.



Features:

High Strength Aluminum Aloy housing.

Light weight and High strength.
Hardened Shaved gears.
Ball bearings.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.



Specifications:

Ratio Max. input torque (N.m) Max. output torque for single pump (N.m) Max. input speed (r/min) Max. output speed
(r/min)
0.68 1120 390 2500 3676
0.83 1056 450 2650 3193
1 1000 500 2800 2800



Connection options:

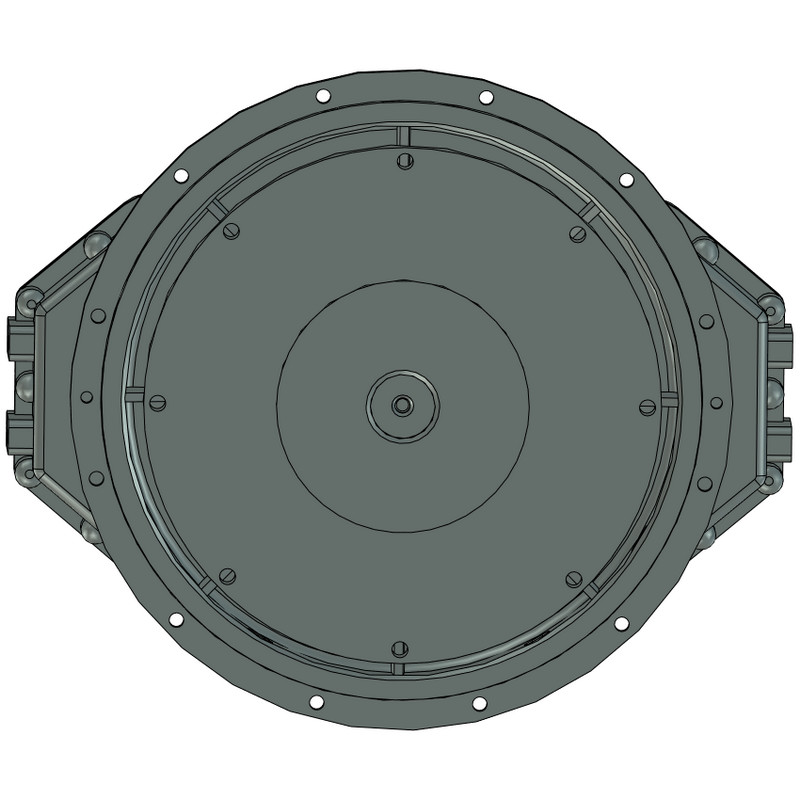

Flywheel housing:

SAE #3



Flywheel:

SAE # 10 inch

SAE # 11.5 inch



Hydraulic flange:

SAE A

SAE B

SAE C



Spline sleeve:

ANSI B92.1 30° 9T-16/32DP 32mm

ANSI B92.1 30° 13T-16/32DP 41mm

ANSI B92.1 30° 15T-16/32DP 46mm

ANSI B92.1 30° 14T-12/24DP 56mm



250HP Two Output Pump Drive 2PD-200 0



Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
