Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input | Engine Flywheel | Output | Hydraulic Pump |
|---|---|---|---|
| Min Output | 350 Nm | Max Output | 5000 Nm |
| High Light | Hydraulic Pump Engine Coupler,Engine Coupler High Flexible,Flywheel Drive Coupling |
||
Product Description

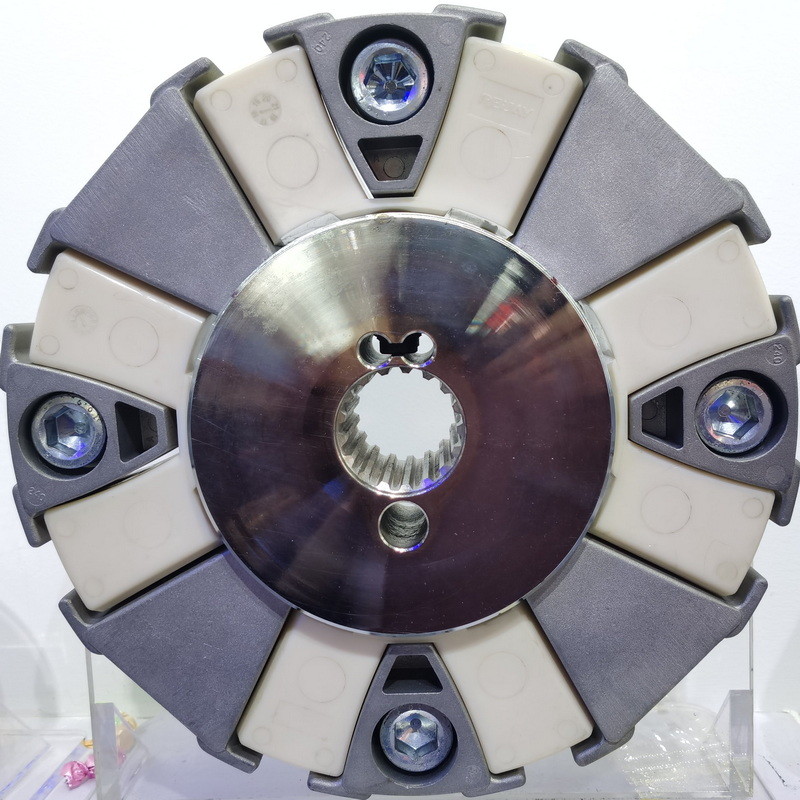

Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling
350Nm to 5000 Nm
High elasticity and torsional vibration resistance Torsion Shaft Coupling for flywheels. Torsion Shaft Coupling is simple in structure, easy to install and maintenance free. The highly elastic elements are made of synthetic rubber and absorb shocks and shocks. In addition to oil resistance and high temperature resistance, it also has the characteristics of insulation and noiseless operation. In the process of transmitting torque, it does not generate loads that are not conducive to the machine.
Specifications:
| Model No | Outside Diameter | Thickness | Rated torque | Max. torque | Max. speed |
| DHF-25K-52 | 175mm | 52mm | 350Nm | 875Nm | 5000rpm |
| DHF-30K-60 | 205mm | 60mm | 500Nm | 1400Nm | 4000rpm |
| DHF-30K-78 | 205mm | 78mm | 500Nm | 1400Nm | 4000rpm |
| DHF-50K-60 | 205mm | 60mm | 800Nm | 2000Nm | 4000rpm |
| DHF-50K-78 | 205mm | 78mm | 800Nm | 2000Nm | 4000rpm |
| DHF-110K-60 | 225mm | 60mm | 1200Nm | 2400Nm | 4000rpm |
| DHF-110K-78 | 225mm | 78mm | 1200Nm | 2400Nm | 4000rpm |
| DHF-160K-73 | 270mm | 73mm | 2000Nm | 4000Nm | 3600rpm |
| DHF-240K-76 | 330mm | 76mm | 2500Nm | 5000Nm | 3000rpm |
| DHF-450K-90 | 410mm | 90mm | 4000Nm | 8000Nm | 2500rpm |
| DHF-550K-90 | 450mm | 90mm | 5000Nm | 10000Nm | 2500rpm |
Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
